Switch Cabinet with Low Voltage Complete Set Design



In the power distribution systems of industries such as power plants, petroleum, chemical engineering, metallurgy, textiles, and high-rise buildings, traditional low-voltage switch cabinets have many drawbacks: low technical performance indicators, difficult to adapt to scenarios with high automation levels, and inability to be compatible with computer interfaces, which seriously affect the stability and efficiency of the power system. Are you troubled by these technical problems? Are you worried that the existing switch cabinets cannot meet the development needs of the modern power market?

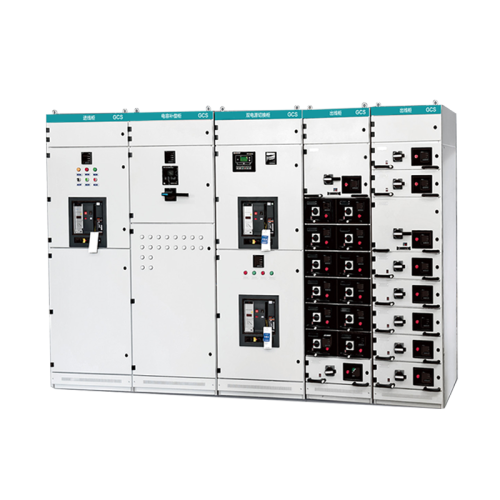

To address these issues, we have launched the GCS type low-voltage withdrawable Switch Cabinet. This is a low-voltage withdrawable switch cabinet designed and developed by a joint design team based on the requirements of industry authorities, a large number of power users, and design units. It has high technical performance indicators and can adapt to the development needs of the power market, and can compete with existing imported products. The GCS type switch cabinet is suitable for power distribution systems in industries such as power plants, petroleum, chemical engineering, metallurgy, textiles, and high-rise buildings, especially in places with high automation levels such as large power plants and petrochemical systems, and can be used as a low-voltage complete distribution device for power generation and supply systems, including three-phase AC frequency of 50 (60) Hz, rated working voltage of 380 (400, 660) V, and rated current of 4000A and below, for power distribution, centralized control of motors, and reactive power compensation.



The design of the GCS type switch cabinet complies with standards such as IEC439-1 "Low-voltage complete switch and control equipment", GB7251 "Low-voltage complete switch equipment", and JB/T9661-1999 "Low-voltage withdrawable complete switch equipment". It is not only applicable to power distribution systems in power plants, but can also be used in conjunction with Transformers (transformers), optimizing power transmission; in the petrochemical system, it can be integrated into Box-type Substation (box-type transformer station), providing stable power supply; at the same time, it can also be used as the core equipment of Switch Cabinet (switch cabinet), enhancing the overall performance of the system.



High technical performance: Complies with international and domestic authoritative standards, with high technical performance indicators.

Automation compatibility: Can be compatible with computer interfaces, adapting to scenarios with high automation levels.

Wide applicability: Suitable for various industries, including power plants, petrochemical systems, etc.



Reasonable layout planning: Plan the layout of the switch cabinet according to actual needs to ensure efficient system operation.

Regular maintenance and inspection: Regularly check the operating status of the switch cabinet, promptly discover and solve problems, and extend the equipment's service life.
