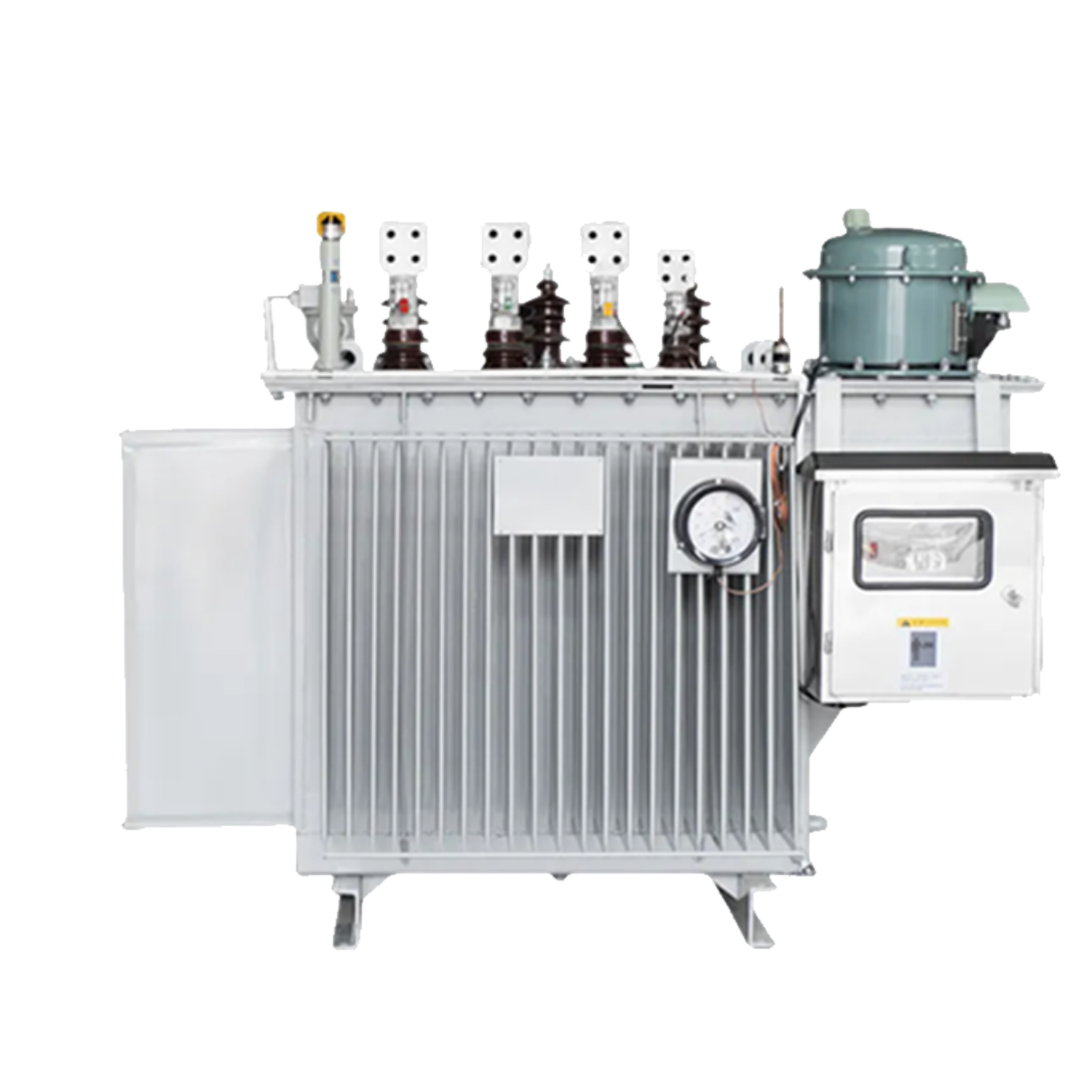

10KV S13 Oil Immersed Transformer

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land
Port:	SHANGHAI,QINGDAO,LIANYUNGANG

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Brand: Kelide

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Container pallet packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

10KV S13 Oil Immersed Transformer:Urban power grid energy efficiency reaches new level with new impetus

The S13 model is a product independently developed by our company. It is based on the original S11 distribution transformer, through the research and application of new materials and new technologies, as well as the combination of independent innovation and technology introduction. Through the optimized and innovative design of the iron core and coil structure, it aims to reduce no-load loss and noise. This product is a result of our own efforts.

Compared with the current national standard JB/T10088-2016, the noise level has been reduced by an average of 20%. The product performance level has reached the advanced domestic level. In the upgrading and transformation of urban power grids, the energy consumption level of traditional Transformers and the area requirements of Transformer Substations form dual pressures. Moreover, the capacity limit of Dry Type Transformers is difficult to meet the demand of high-load scenarios. The S13 10kV oil-immersed transformer, through three-dimensional energy efficiency optimization, provides a cost-effective power distribution solution for commercial areas and residential areas. We also have Transformer Accessories. Please feel free to contact us.

Core breakthroughs

Three-dimensional oil passage design: Innovates the traditional heat dissipation structure, reducing the no-load loss by 30% compared to the national standard

Protection upgrade: The fully sealed oil tank structure reaches the IP55 protection level, capable of withstanding 45° tilt operation

Flexible configuration: Covers a capacity range of 30-3150 kVA, suitable for standardized deployment in Compact substations

Implementation results

In the renovation of old communities, we successfully replaced the Dry Type Transformer, reducing the load loss by 28%. The measured operating noise was ≤ 45 dB, meeting the standards of the first-class acoustic environment functional area.

Operation and Maintenance Suggestions

• It is recommended to install soundproof barriers near residential areas.

• For the deployment of Transformer Substations, a maintenance passage of at least 80cm on both sides should be reserved.
