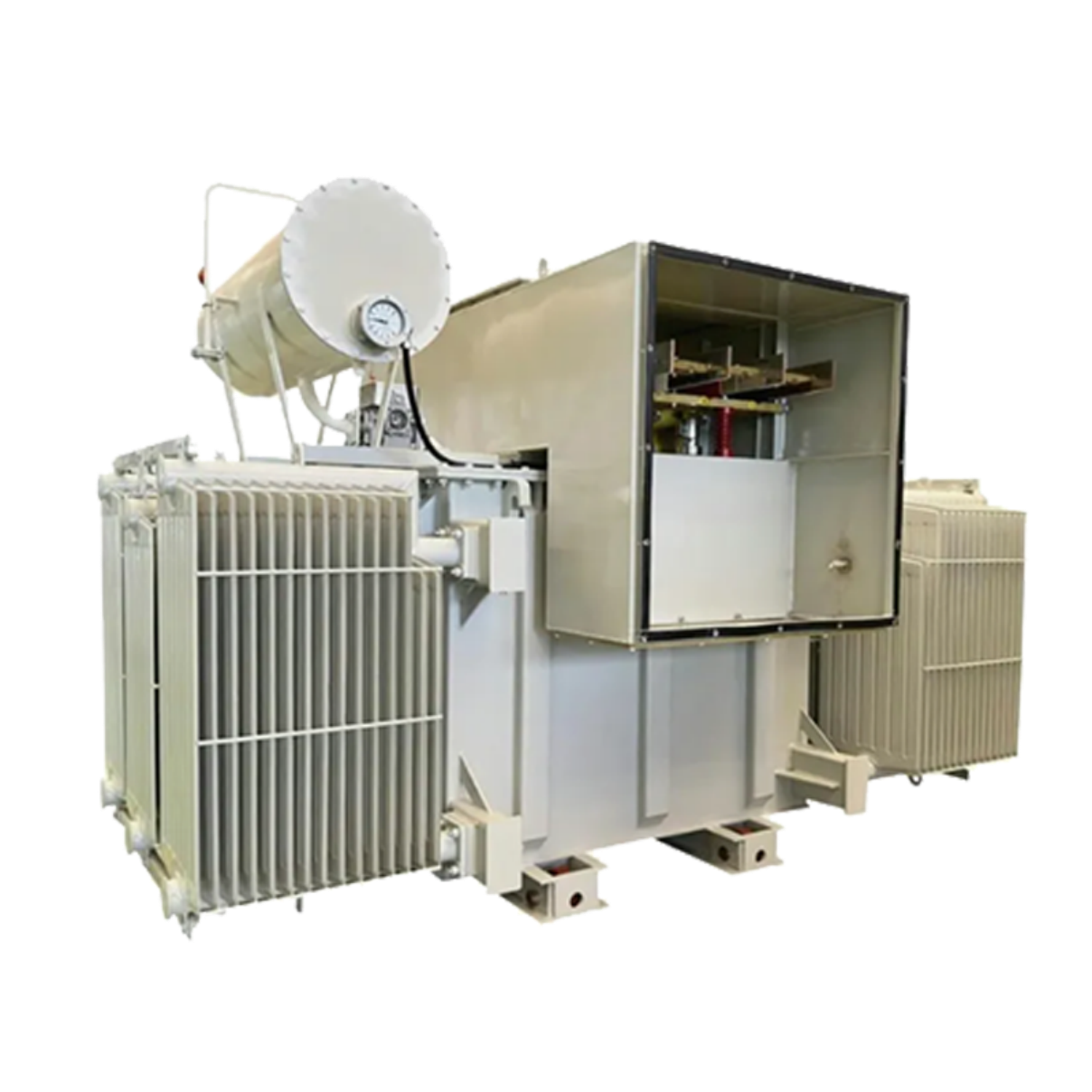

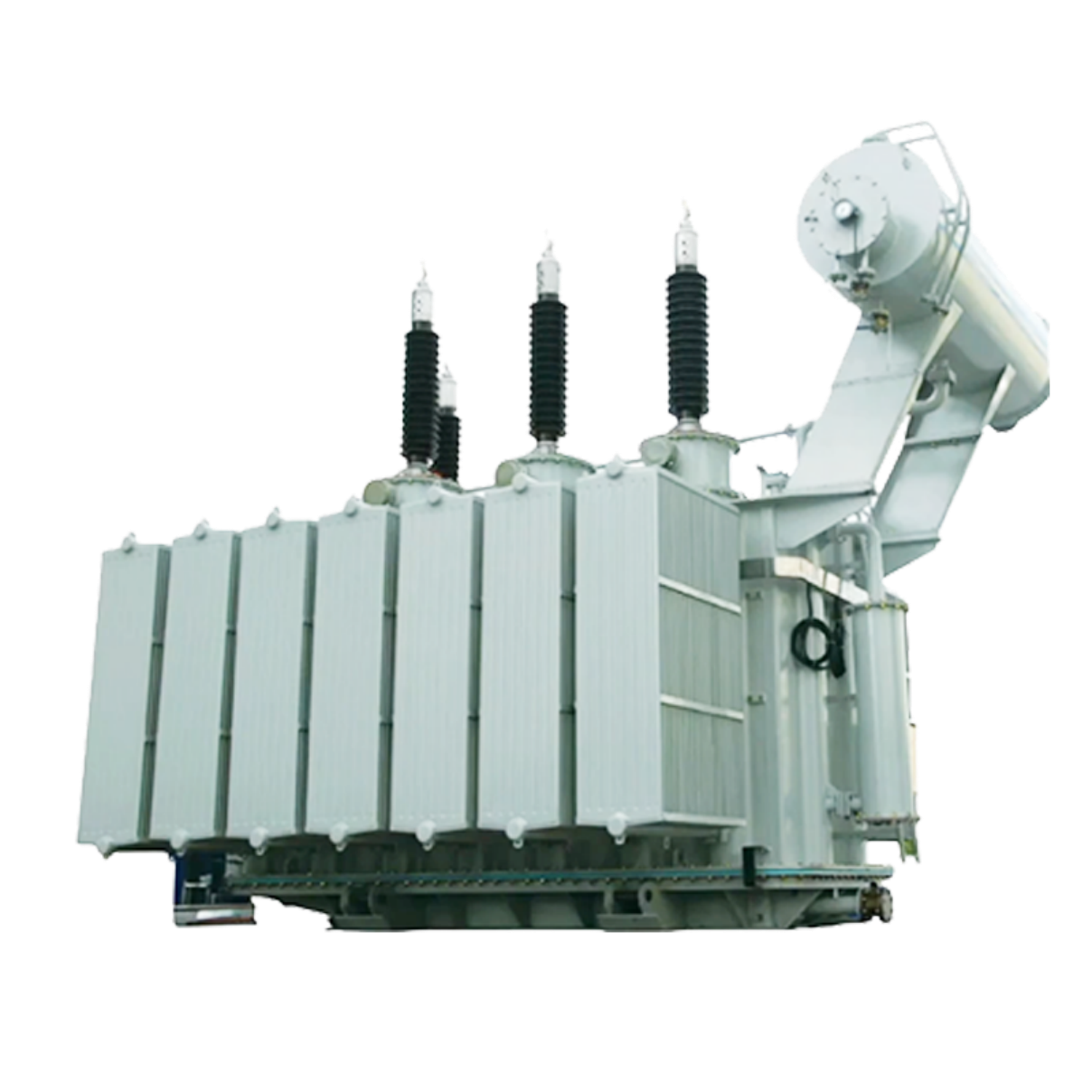

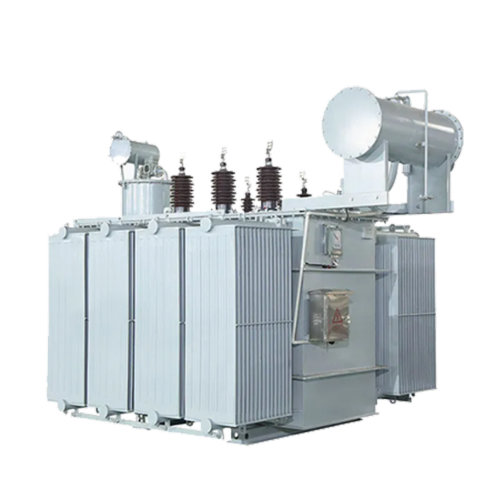

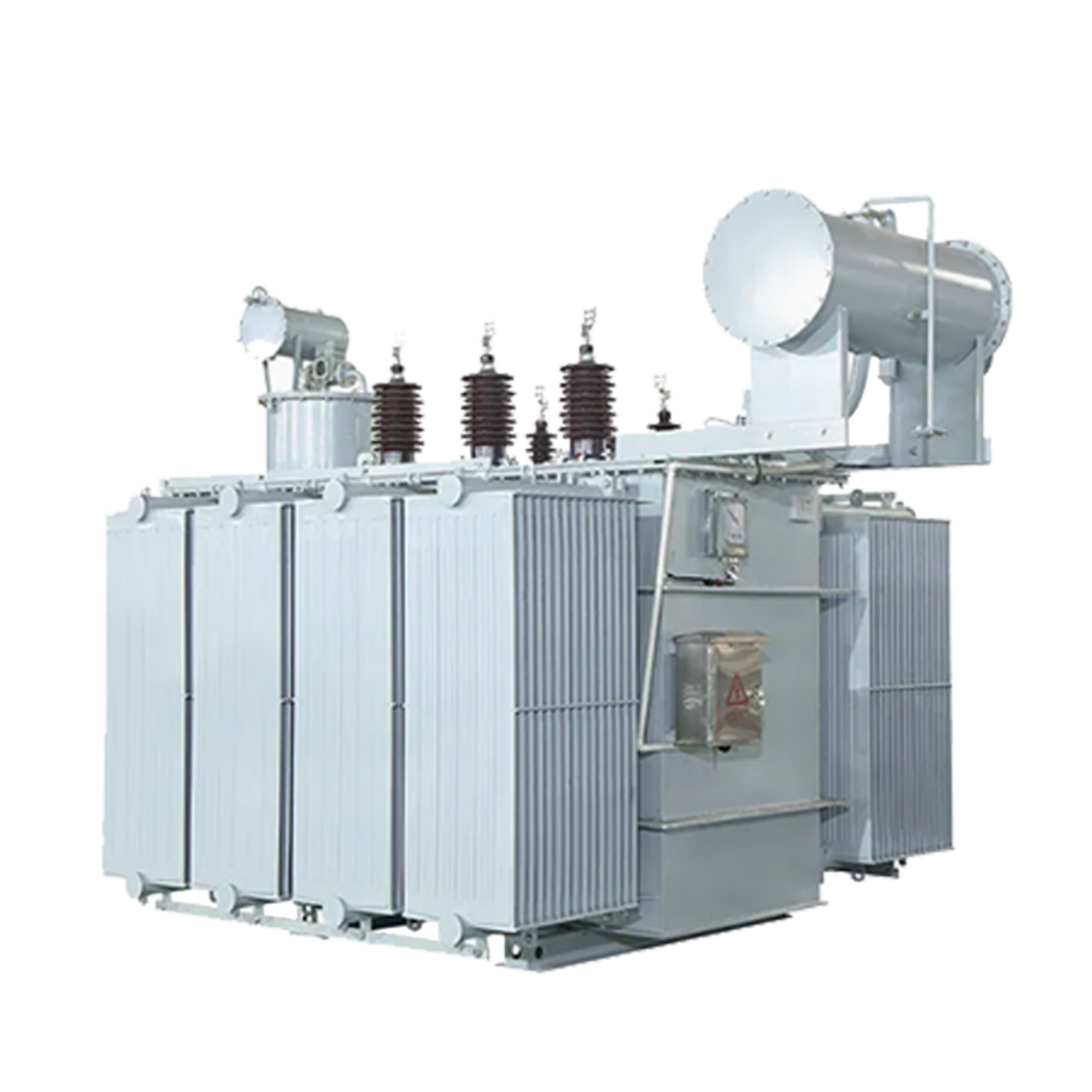

35KV S13 Oil Immersed Transformer



In the operation scenarios of high voltage power grids, traditional transformers often encounter problems such as weak short-circuit tolerance and low heat dissipation efficiency. This not only easily causes equipment failures but also poses a threat to the safe and stable operation of the power grid. If you are struggling to find a transformer that is reliable and durable in high voltage environments and has efficient heat dissipation, the 35kV S13 oil-immersed transformer will provide you with an ideal solution.



The 35kV S13 oil-immersed transformer, with its advanced design and excellent performance, has become a key force in high-voltage power transmission. In large Transformer Substations and critical Compact substations, its wide capacity range of 30KVA to 3150KVA can meet the diverse high-voltage power conversion needs of urban power grids, large power plants, etc. This transformer has undergone comprehensive innovations in materials, structure, and processes. The high and low voltage clamps use steel straps or upper beams and side beams for tensioning, forming a sturdy frame structure, significantly enhancing the clamping force of the iron core and improving the ability to withstand transportation shocks. At the same time, it significantly improves the short-circuit resistance performance. The appearance is elegant and practical, achieving low loss and low noise operation, with performance reaching the advanced level of similar foreign products.We also have Dry-type Transformer. Please feel free to contact us.



It is worth noting that the longitudinal oil channels set in the high and low voltage windings of the transformer provide significant advantages for heat dissipation, effectively reducing the copper-oil temperature difference and the hottest point temperature rise inside the windings. Even when operating under high load conditions for a long time, it can ensure the stable operation of the equipment. Just like the SZ13 - 20000/35 transformer prototype that has passed the sudden short-circuit test of the National Transformer Testing Center in one go, it fully demonstrates the reliable quality of this series of products.



Strong Structure Design: Innovative frame structure enhances the clamping force of the iron core and short-circuit resistance, ensuring safe and reliable operation.

We also have Transformer Accessories. Please feel free to contact us.

Efficient Heat Dissipation System: The longitudinal oil channels accelerate heat conduction, reducing the temperature rise of the windings, and adapting to high-load operation.

Low Noise and Energy-Saving Operation: Low operating loss and low noise, balancing energy conservation and environmental friendliness.

Tips: When installing, ensure there is sufficient space around the transformer for daily inspection and maintenance, which is also conducive to air circulation for heat dissipation.
