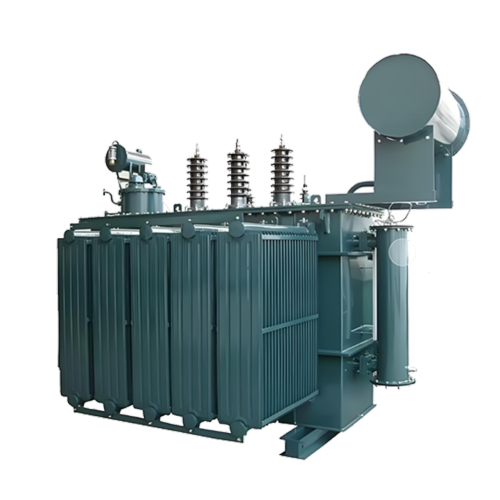

20KV S13 Oil Immersed Transformer

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land
Port:	SHANGHAI,QINGDAO,LIANYUNGANG

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Brand: Kelide

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Container pallet packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

20KV S13 Oil Immersed Transformer:Industrial High-Voltage Protection Expert

Under the background of continuous expansion of industrial parks, the contradiction between the heat dissipation efficiency of oil Immersed transformer and the overload capacity of compact substations becomes particularly prominent. The S13 type 20kV oil-immersed transformer has redefined the industrial-grade power distribution standard through multi-dimensional technological innovation. We also have Dry-type Transformer . Please feel free to contact us.
Product features:

1. Excellent economic performance: The S13 to S22 series products have reduced the average no-load loss by 30% compared to the S9 series, and the no-load current has decreased by 70% to 85% compared to the S9 series.

2. Long service life: The transformer oil tank adopts a fully sealed structure. The oil tank and the tank edge can be connected by bolts or welded. The transformer oil does not come into contact with the air, thus extending the service life.

3. High operational reliability: The sealing components of the oil tank have been modified, increasing reliability and improving the manufacturing process to ensure the reliability of the seal.

4. Small floor space: The oil tanks of the S13-M and S22-M series transformers adopt a corrugated plate design. When the oil temperature changes, the corrugated plates will expand and contract, thereby replacing the function of the oil reservoir. This corrugated plate type oil tank has an attractive appearance and a small floor space.
Scene verification
Field tests in the chemical industrial park have shown that with a 150% overload, the temperature rise does not exceed 65K within 2 hours. The fully sealed structure enables five-year maintenance-free operation, and the maintenance cost is 60% lower compared to Dry Type Transformers.

Deployment Specifications
• Compact substations are recommended to adopt an upward-in and downward-out ventilation layout
• Phase calibration is required when integrating with existing equipment of Transformer Substation
