20KV SCB18 Dry Type Distribution Transformer

20KV SCB18 Dry Type Distribution Transformer

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land
Port:	SHANGHAI,QINGDAO,LIANYUNGANG

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Brand: Kelide

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Container pallet packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

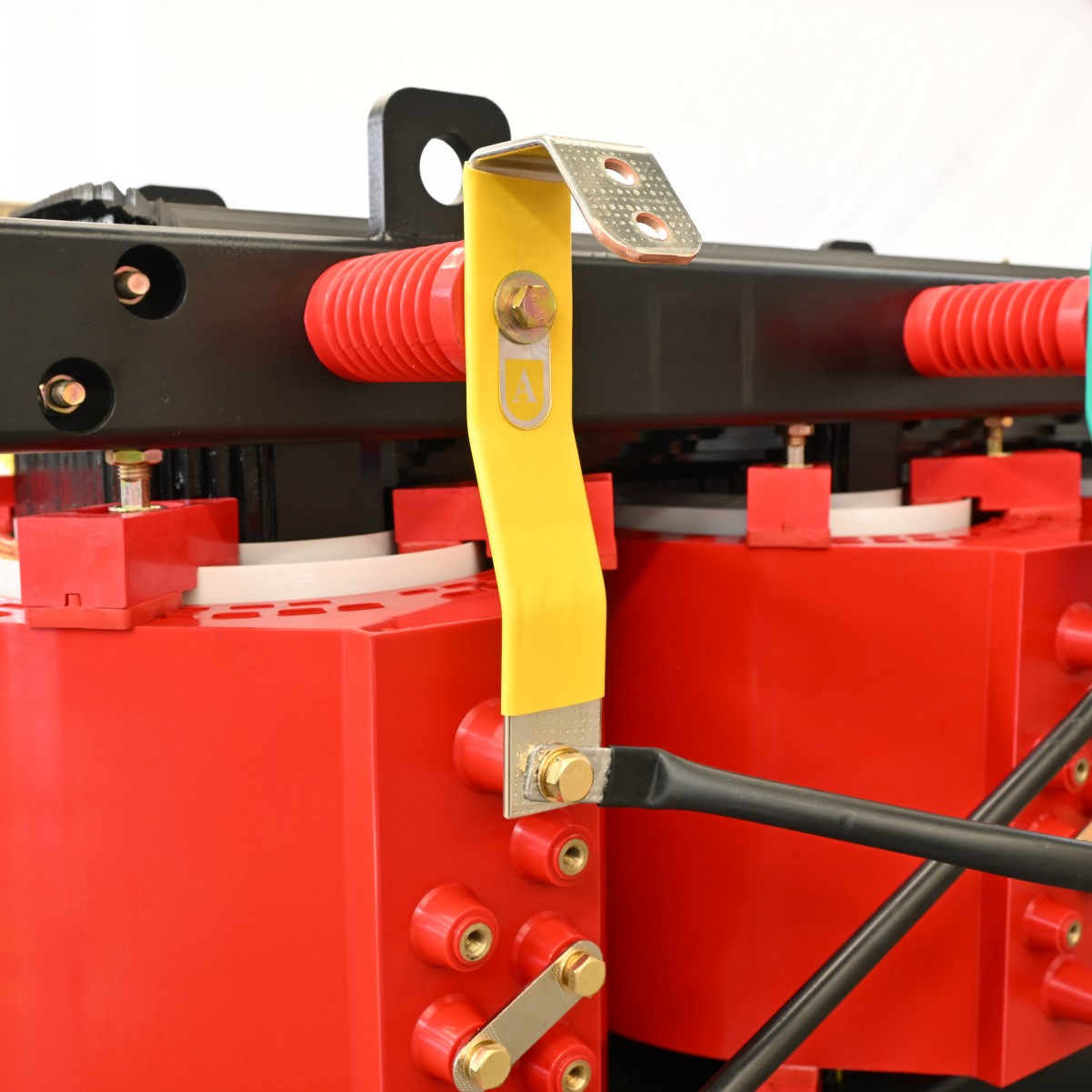

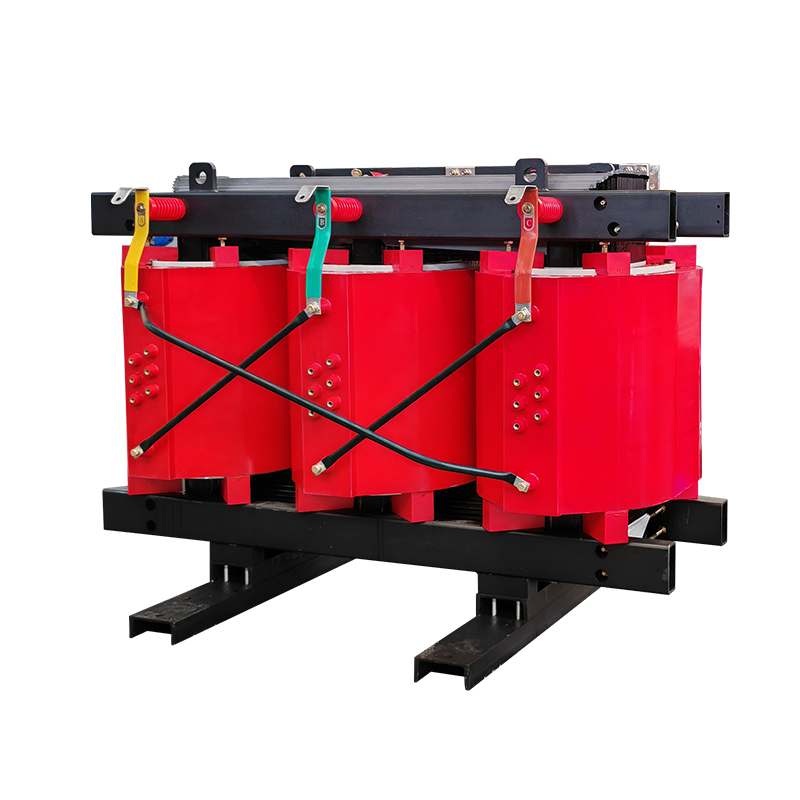

20KV SCB18 Dry Type Transformer:Industrial electricity supply is as stable as a rock.

Facing the harsh environment of the chemical industrial park, the corrosion resistance of traditional dry type transformers and the leakage risk of Oil-immersed Transformers have become technical bottlenecks. The 20kV SCB18 dry type transformer, through a six-dimensional protection system, creates a highly reliable power supply system for industrial scenarios. Also supports customization of 30KVA - 2500KVA capacity to meet diverse power consumption needs.

Technical breakthroughs

Armor-level protection: Multi-layer resin + ceramic filler structure, salt spray corrosion resistance reaches ISO 9227 C5-M level

Dynamic heat dissipation management: Automatically adjusts the power of air cooling based on the temperature and humidity of Compact substations, maintaining 150% overload capacity even in extreme conditions

Electromagnetic collaborative design: Innovative magnetic circuit architecture matches the existing parameters of Transformer Substation, reducing system loss by 18%

Practical performance

During the continuous operation tests at the coastal petrochemical base, the products withstood the dual challenges of 100% humidity and oil-gas corrosion. Compared with traditional dry-type transformers, the operation and maintenance costs were reduced by 55%, and the noise level decreased by 10 dB(A).

Deployment Specifications

• Explosion-proof areas must be equipped with external positive pressure ventilation devices

• When used in conjunction with oil-immersed transformers, a physical isolation barrier should be set up
