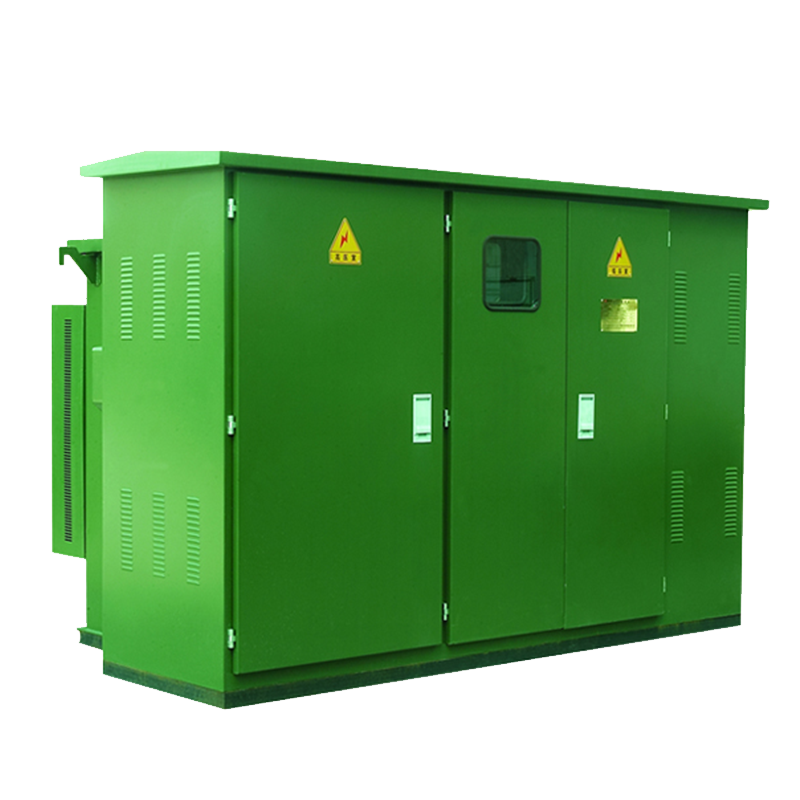

Outdoor Prefabricated Substation (American Style)



In the construction of urban and rural distribution networks, traditional box-type substations have problems such as low functional integration, poor selectability, and high operation and maintenance costs. Are you troubled by the complex equipment selection and inconvenient operation monitoring? Are you worried that the equipment performance cannot meet the actual needs of the grid? The ZBM series pre-assembled transformer station brings you an efficient solution. As a domesticized American box-type transformer, the ZBM series integrates high-voltage control, protection, power transformation, and distribution equipment, and is an important power supply unit in cableized distribution networks. This product places high-voltage load switches and high-voltage fuses in the transformer oil, adopts a fully sealed oil tank structure, and is equipped with oil temperature gauges, oil level gauges, pressure gauges, etc. , effectively monitoring the operating conditions of the transformer. The plug-in type dry-type fuse is introduced, and the fuse melting does not affect the performance of the transformer oil, ensuring the stable operation of the equipment. According to the requirements of low-voltage feeders, the ZBM series is divided into standard type, enhanced type, and comprehensive type in three enclosure forms to meet different scenarios. We support the customization of Box-type Substation, helping users and design units to select flexibly and reduce costs and increase efficiency.



Integrated Functionality: High-voltage control, protection, power transformation, and distribution equipment are integrated into one, improving equipment performance.

Flexible Selection: Three enclosure forms are suitable for different needs, making the selection more flexible and cost-effective.

Fully Sealed Structure: The oil tank has strong sealing performance and is equipped with various monitoring components to ensure the safety of equipment operation.



Regular Maintenance: Pay attention to the oil temperature and oil level of Oil-immersed Transformers to ensure the long-term stable operation of the equipment.

Custom Service: Choose Dry-type Transformer or oil-immersed transformer according to actual needs to optimize equipment configuration.
