Chinese-Style Substation with Safety Functions

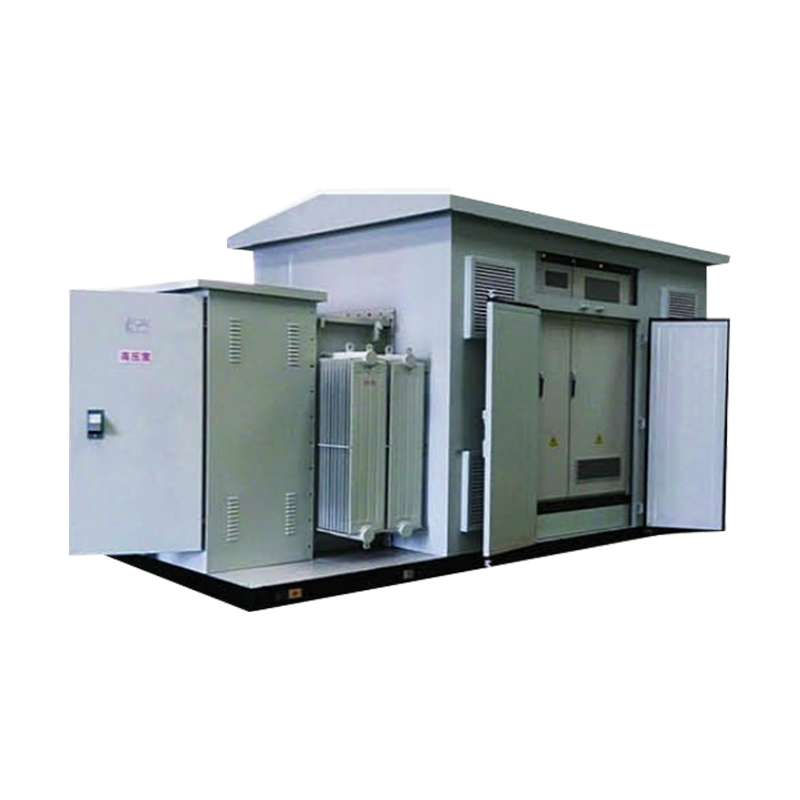

In the field of new energy power generation, traditional box-type substations have always faced problems such as poor heat dissipation and inconvenient monitoring. Are you troubled by the low efficiency of transformer heat dissipation and unstable equipment operation? Are you worried that the equipment operation status cannot be monitored in real time, making fault detection difficult? The Huazhi structure Box-type Substation brings you an efficient solution. The Huazhi box substation places the Transformer outside the box substation shell, quickly dissipating heat through natural climate, effectively solving the heat dissipation problem. The box substation shell is divided into high-voltage and low-voltage compartments by partitions, with a reasonable structure design to ensure operational safety. Compared with traditional box substations, the Huazhi box substation uses only one fuse per phase, simplifying the protection device and enabling automatic tripping of the load switch to cut off the power supply when any fuse melts, allowing the main switch to be re-energized only after replacing the fuse, ensuring the safety of equipment operation. The high-voltage compartment is equipped with a 35kV load switch, with built-in isolation and fuse protection, and a signal transmission node for convenient background monitoring. The low-voltage part consists of intelligent frame circuit breakers and comprehensive measurement and control devices, which can monitor the switch status and the operation of the transformer protection device in real time, and transmit the information via GPS to the main control room for remote monitoring. We support customization of Box-type Substation to meet your personalized needs.



Efficient heat dissipation design: Transformer placed outside the shell, natural heat dissipation, solving heat dissipation problems.

Simplified protection device: Only one fuse per phase, simplifying the structure, improving operational stability.

Intelligent monitoring system: Through measurement and control devices and GPS transmission, achieving remote monitoring, facilitating operation and maintenance management.

Regular inspection: Pay attention to the status of Transformer Accessories to ensure the long-term stable operation of the equipment.

Flexible configuration: Choose the capacity and function modules of Transformer Substation according to actual needs.
